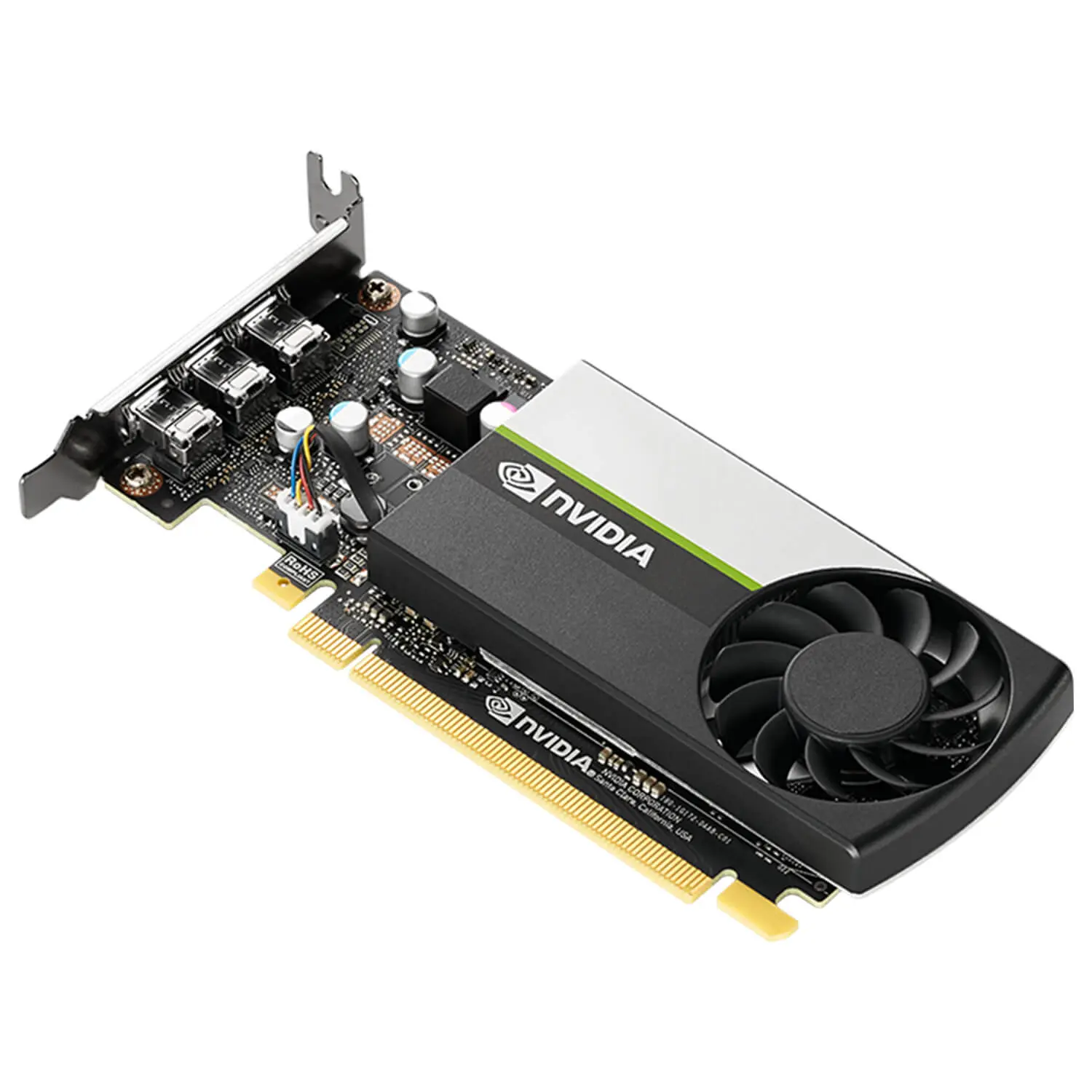

PNY Nvidia Quadro T400 4GB GDDR6 Graphics Card
₹12,999
(incl. all taxes)
- 4GB GDDR6 GPU Memory
- 64-bit Bus Memory
- PCI-Express 3.0×16 Interface
- Maximum 4 Display Support
- 80 GB/s Memory Bandwidth
7 Days Return
GST Invoice
GPU Interface – PCI Express 3.0×16
Memory – 4 GB GDDR6
CUDA Cores – 384
Memory Bandwidth – 80 GB/s
Memory Bus – 64-bit
Maximum Display Support – 4
OVERVIEW
Being the part of professional GPUs Nvidia RTX family, the PNY Nvidia T400 4GB GDDR6 provides the features, reliability, performance, and support that its users expect. The PNY Nvidia T400, built on the Nvidia Turing GPU architecture, delivers amazing performance and capabilities to power a range of professional workflows.
The GPU features 4GB of GDDR6 memory, 384 CUDA cores, T400 packs power and performance in a small form factor, support for up to three 5K displays, can tackle a range of multi-app workflows with ease.
Nvidia GPUs provide the visual computing power required by millions of professionals as part of their daily workflow. All the phases of the professional workflow, from creating, editing, and viewing 2D and 3D models and video, to working with multiple applications across several displays and also benefited from the power that is provided by only a discreet GPU solution.
Also, the Nvidia entry-level professional GPUs provide advanced features and performance far beyond what is available with integrated GPU solutions – all in a low-profile package, enabling deployment in a wide range of small form factor workstations
Minimum Hardware Requirements :
1. Intel Core i5, i7, i9, or Xeon processor or later
2. AMD Ryzen or Epyc class processor or later
3. PCI Express 4.0 x16 (preferred) expansion slot
4. DisplayPort 1.4a (preferred), HDMI, or DVI compatible display(s)
5. Internet connection for driver installation
6. System memory greater than or equal to GPU memory, twice the GPU memory recommended
TECHNICAL SPECIFICATION
| Part Number | VCNT400-4GB-PB |
| GPU Memory | 4 GB GDDR6 |
| CUDA Cores | 384 |
| Memory Interface | 64-bit |
| Memory Bandwidth | 80 GB/s |
| Form Factor | Low-Profile Single Slot |
| Peak FP32 Performance | 1.094 TFLOPS |
| System Interface | PCI Express 3.0 x16 |
| Max Power Consumption | 30 W |
| Display Connectors | 3x mDP |
| Thermal Solution | Active Fansink |
| Max Digital Resolution | 7680 x 4320 at 60 Hz |
| Max Displays | 4x at 5K | 5120 x 2880 at 60 Hz |
| HDR Support | Yes |
| Quad Buffered Stereo | Yes |
| NVENC | NVDEC | 2x H.264 and HVEC Encoders, 1x Decode Engine |
| 3D Graphics Architecture | Scalable geometry architecture Hardware tessellation engine NVIDIA GigaThread engine with 3 async copy engines Shader Model 5.1 (OpenGL 4.5 and DirectX 12) Up to 32K x 32K texture and render processing Transparent multisampling and supersampling 16x angle independent anisotropic filtering 32-bit per-component floating point texture filtering and blending 64x full scene antialiasing (FSAA) Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later) Dedicated H.264 and HEVC Encoder1 Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback) NVIDIA GPU Boost (automatically improves GPU engine throughput to maximize application performance) |
| Nvidia Cuda Parallel Processing Architecture | SMM architecture (NVIDIA Turing streaming multi-processor design that delivers greater processing and efficiency) Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU) API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran 96 KB of RAM (dedicated shared memory per SM) |
| Advanced Display Features | Support for any combination of four connected displays Three DisplayPort 1.4 outputs (supporting resolutions such as 3840 x 2160 at 120 Hz and 5120 x 2880 at 60 Hz) The mini-DisplayPort connectors are designed with a custom retention mechanism to firmly secure their connection with the display cable. HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60 Hz 10b/12b HEVC Decode, 4K at 60 Hz 10b HEVC Encode) HDCP 2.2 support over DisplayPort, DVI, and HDMI adapters 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection) Full OpenGL quad buffered stereo support Underscan/overscan compensation and hardware scaling NVIDIA RTX Experience NVIDIA RTX Desktop Manager Support for Nvidia Mosaic |
| Display Port and HDMI Digital Audio | Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC |
| Supported Platforms | Microsoft Windows 10 (64-bit), Red Hat Enterprise Linux 7. x, SUSE Linux Enterprise Desktop 15. x, OpenSuse 15, Fedora 31, Ubuntu 18.04, FreeBSD 11.x, Solaris 11 |
| Package Contains | 1x NVIDIA T400 4GB professional graphics card, 1x Attached low-profile (SFF) bracket, 1x Unattached full-height (ATX) bracket, 1x NVIDIA Turing Quick Start Guide, 1x NVIDIA Turing Support Guide, 1x 3x mDP to DisplayPort adapters |
Specification: PNY Nvidia Quadro T400 4GB GDDR6 Graphics Card
|
