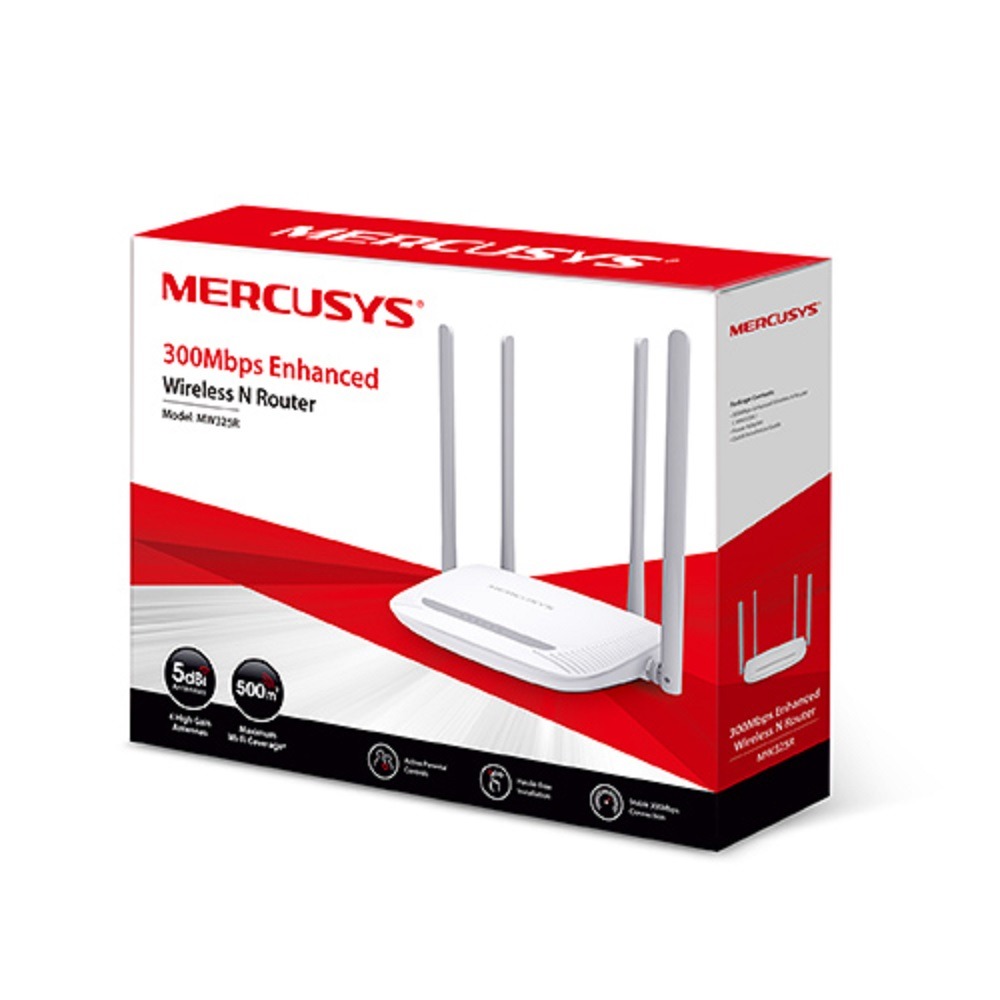

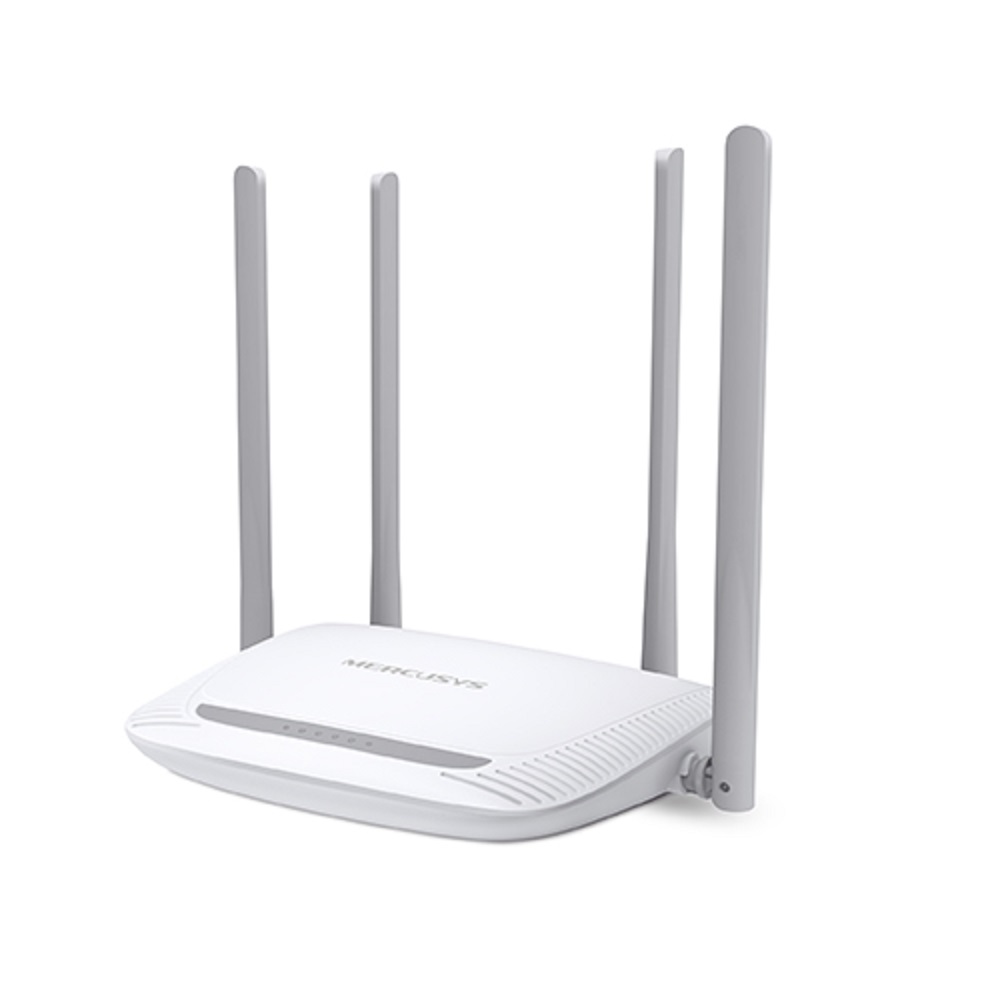

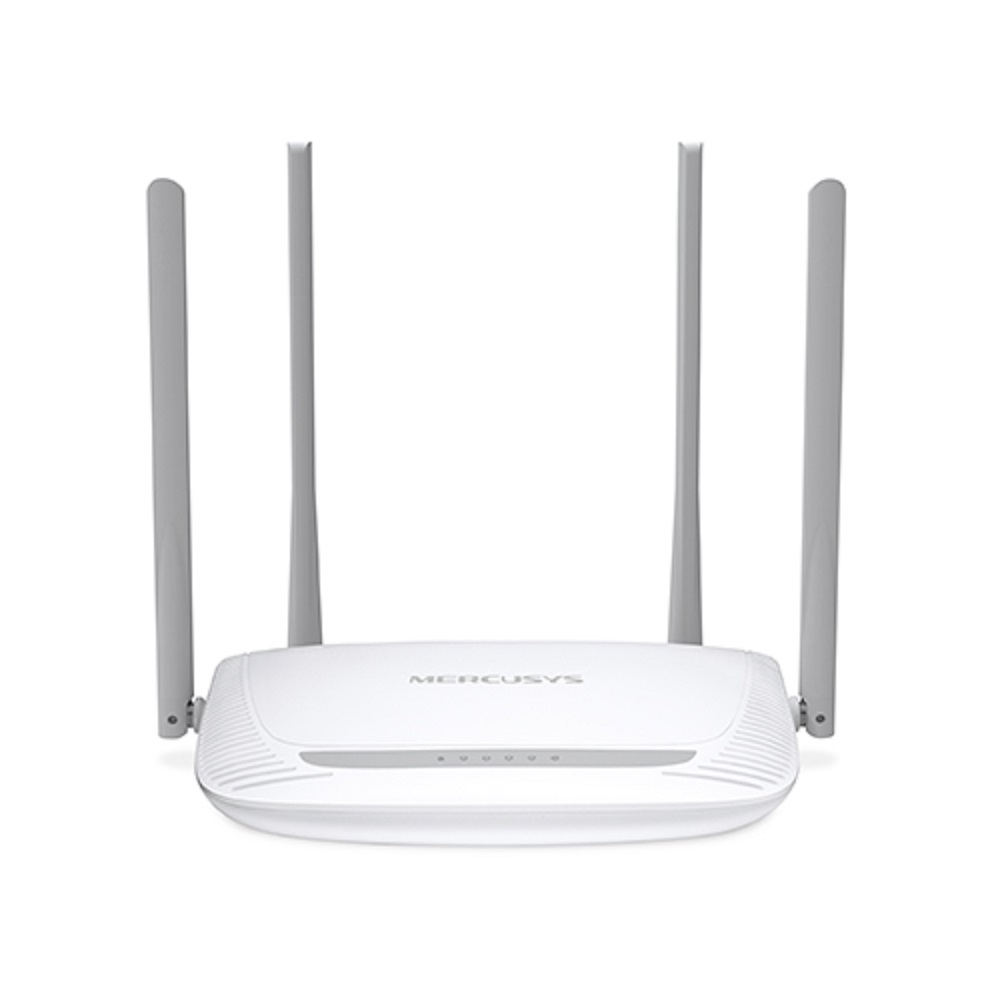

HIGHLIGHTS: Mercusys MW325R 300 Mbps Wireless N Router
Product – MW325R Wireless N Router
Speed – 300Mbps wireless speed
Frequency 2.4 – 2.5GHz
Transmission Power – <20dBm
Antenna – 4 x 5dBi Omni directional antennas
About Mercusys MW325R 300 Mbps Wireless N Router
Mercusys MW325R has four 5dBi antennas that provide up to 500m2 wireless coverage.
This Wi-Fi router increases signal strength, size, and stability via high-gain antennas.
Perfect for HD streaming, online gaming, and extensive data downloads it offers 300Mbps of wireless speed.
Its intuitive webpage guides you through the setup process in just a few minutes.
*The actual performance depends on the applications and environment. Also, the range specifications depend on performance test results.
TECHNICAL SPECIFICATIONS
Wireless
Wireless Standards
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
Frequency
2.4 – 2.5GHz
Signal Rate
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Reception Sensitivity
270M: -70dBm@10% PER
130M: -72dBm@10% PER
54M: -74dBm@10% PER
11M: -87dBm@10% PER
6M: -92dBm@10% PER
1M: -94dBm@10% PER
Transmission Power
<20dBm
Wireless Security
WPA-PSK / WPA2-PSK
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge
Software
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access control
Local management
Remote management
DHCP
Server, DHCP Client List
Port Forwarding
Virtual server, UPnP, DMZ
Dynamic DNS
Oray
Firewall Security
IP and MAC address binding
Protocols
IPv4
Guest Network
2.4GHz guest network
Hardware
Interfaces
3 10/100Mbps LAN ports
1 10/100Mbps WAN port
Button
Reset button
External Power Supply
5VDC/0.6A
Antenna Type
4 x 5dBi fixed omnidirectional antennas
Dimensions (W X D X H)
167 x 118 x 33 mm
Others
Certifications
CE, ROHS
Package Contains
MW325R 300Mbps Enhanced Wireless N Router
Power adapter
Quick installation guide
RJ45 Ethernet cable
