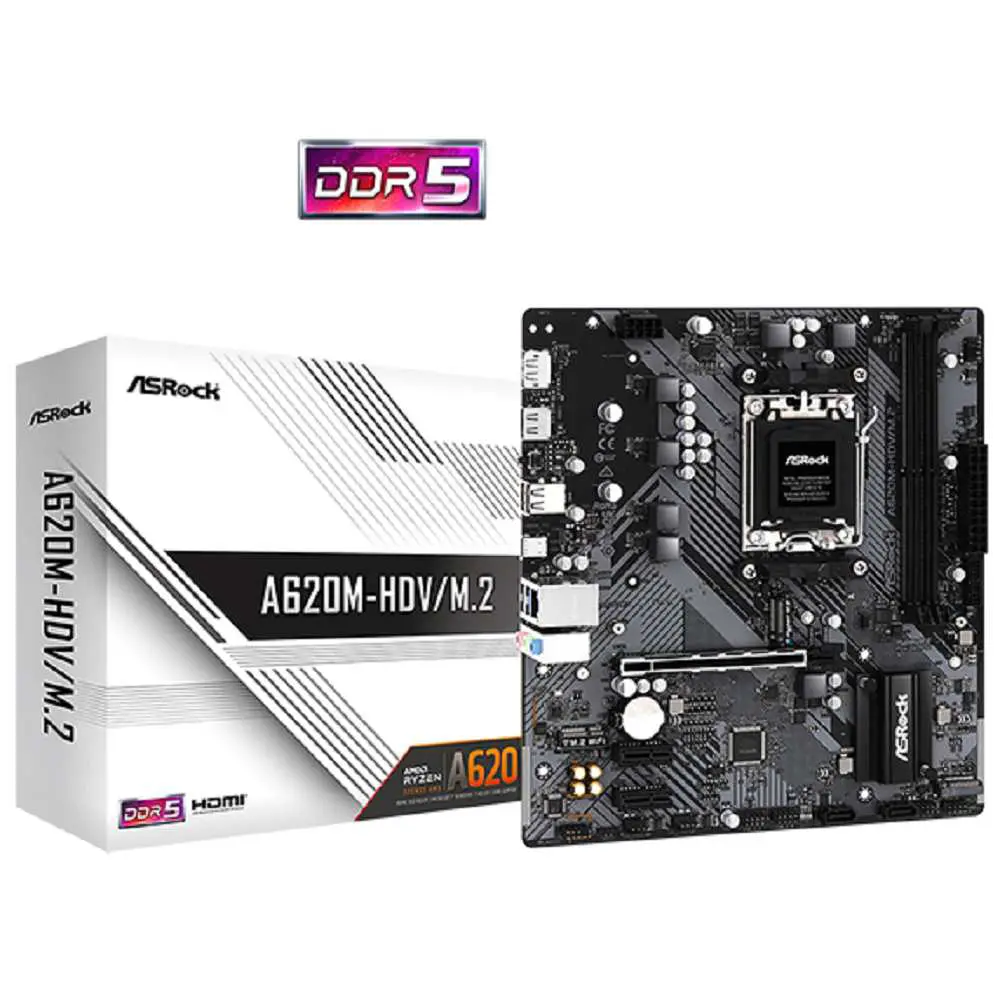

ASRock A620M-HDV/M.2 Micro ATX Motherboard
₹8,699
(incl. all taxes)
- Micro ATX Form Factor
- AMD A620 Chipset
- Dual-Channel DDR5 Memory
- 2 x SATA3, 1 x Hyper M.2, 1 x M.2
- AMD RDNA 2 Graphics Integrated
7 Days Return
GST Invoice
HIGHLIGHTS: ASRock A620M-HDV/M.2 Micro ATX Motherboard
Motherboard Chipset – AMD A620
CPU Socket – Supports AMD AM5 Socket
LAN – Realtek Gigabit LAN
DIMM Slots – 2 x DDR5 DIMM Slots
Form Factor – Micro ATX
About ASRock A620M-HDV/M.2 Micro ATX Motherboard
The ASRock A620M-HDV/M.2 is a micro ATX motherboard that is compatible with AMD Ryzen 7000 series desktop processors. It has a 6+1+1 phase VRM design, which provides a stable power supply to the CPU and is sufficient for most users. This ASRock A620M-HDV/M.2 motherboard also has two DDR5 memory slots, which support up to 96GB of memory.
In terms of storage, the ASRock A620M-HDV/M.2 has two M.2 slots, one of which supports one PCIe 4.0, and four SATA ports. This gives users a good amount of flexibility regarding how they want to build their storage.
For flexible connectivity, the ASRock A620M-HDV/M.2 has one Gigabit LAN port, one USB 3.2 Gen2 Type-C port, five USB 3.2 Gen1 Type-A ports, and one HDMI port. This is a good selection of ports for a budget motherboard, but it is worth noting that there is no DisplayPort output.
FEATURES:
- AMD AM5 Socket – Supports AMD AM5 Socket with Ryzen 7000 Series Processors
- 4+1+1 Power Phase, Dr.MOS – 4+1+1 Power Phase provides enhanced performance and up to 65w smooth power supply to the processor. While Dr.Mos offers improved thermal results and maximum performance.
- DDR5 6400+ MHz (OC) – Dual Channel DDR5 Memory Technology allows you to overclock your RAM for a performance boost. ASRock A620M-HDV/M.2 Plus supports a maximum of 96GB DDR5 RAM with 6400+ MHz (OC).
- 5 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front) – USB 3.2 Gen1 ports on the front and rear side provide fast data transfer rates for your peripherals.
- Dual Graphics Outputs (HDMI & DisplayPorts) – This allows you to use two graphics cards in your system.
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio – ASRock A620M-HDV/M.2 Micro ATX Motherboard features Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio. Therefore, it supports 7.1 channel surround sound and improved sound quality.
TECHNICAL SPECIFICATIONS
| CPU | – Supports AMD Socket AM5 Ryzen 7000 Series Processors |
| Chipset | – AMD A620 |
| Form Factor | – Micro ATX Form Factor – 2oz Copper PCB |
| Memory | – Dual Channel DDR5 Memory Technology – 2 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)* – Max. capacity of system memory: 96GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules *Please refer to Memory Support List for more information. |
| BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA 2 graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
| LAN | – Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111H |
| Slots | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – 15μ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks |
| Storage | CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* – 2 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks |
| Connector | – 1 x Power LED and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) *CPU_FAN1 supports the fan power up to 1A (12W). **CHA_FAN1~3/WP support the fan power up to 2A (24W). CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |

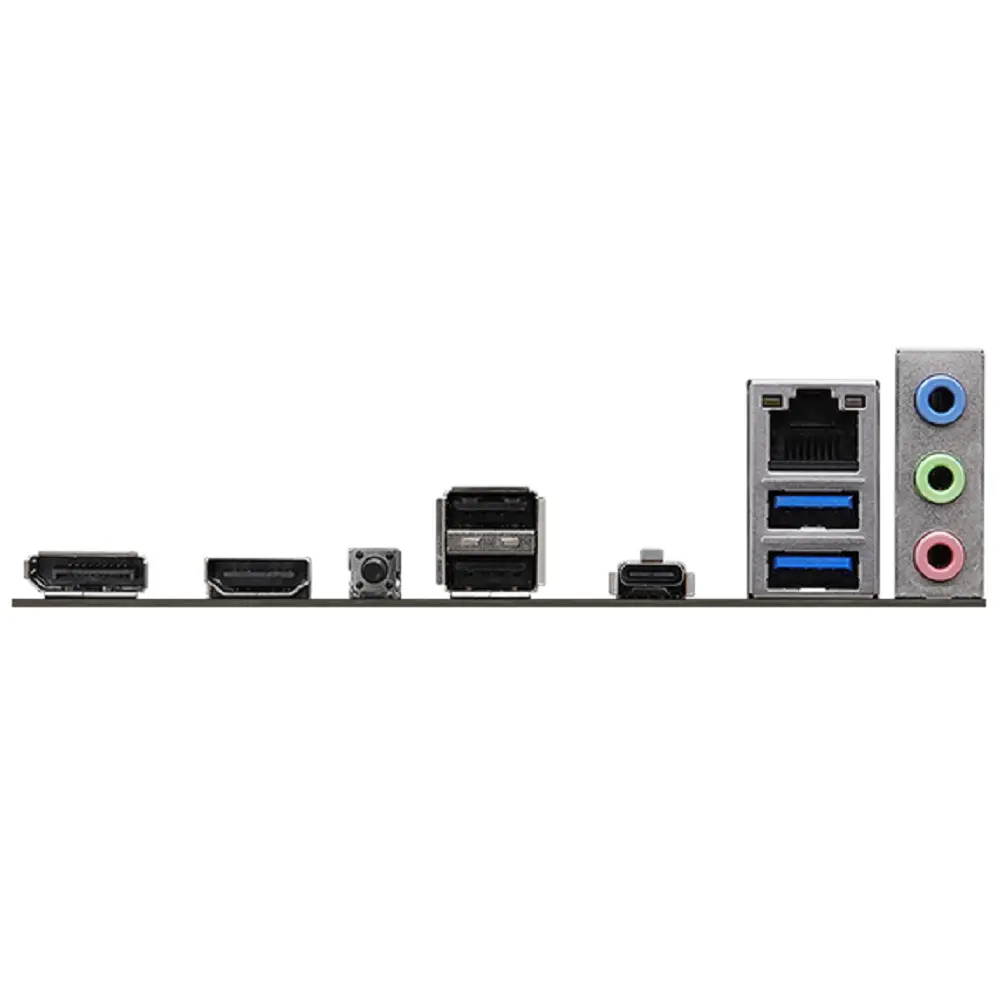

| Rear Panel I/O | – 2 x Antenna Mounting Points – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 2 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| RAID | – Supports RAID 0 and RAID 1 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10 |
| USB | – 1 x USB 3.2 Gen1 Type-C (Rear) – 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front) *All USB ports support ESD Protection |
| Operating System | – Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Unique Feature | Superb Productivity – Dual Channel DDR5 Rock-Solid Durability – 4+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
| Dimensions | 9.6-in x 8.9-in (24.4 cm x 22.6 cm) |
| Accessories | – 1 x User Manual – 1 x I/O Shield – 2 x SATA Data Cables – 3 x Screws for M.2 Sockets |
Specification: ASRock A620M-HDV/M.2 Micro ATX Motherboard
|
