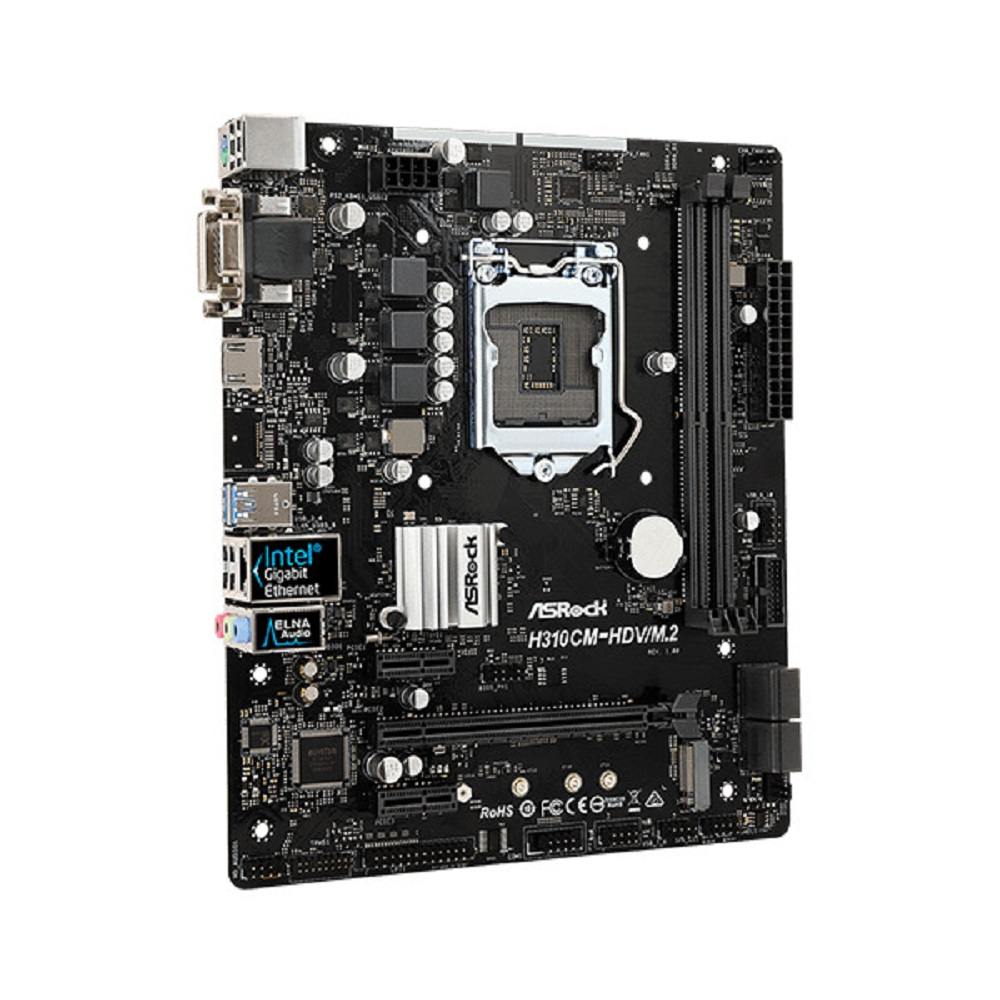

ASRock H310CM-HDV/M.2 Micro ATX Motherboard
₹5,749
(incl. all taxes)
- LGA1151 CPU Socket
- Intel H310 Chipset Support
- Max Memory Capacity 32GB
- Micro ATX Form Factor
- 7.1 CH HD Audio
7 Days Return
GST Invoice
HIGHLIGHTS: ASRock H310CM-HDV/M.2 Micro ATX Motherboard
Model – H310CM-HDV/M.2
Memory – 32GB DDR4
Chipset – Intel H310
CPU Socket – Socket 1151
Graphics Output Options – D-Sub, DVI-D, and HDMI
ABOUT ASRock H310CM-HDV/M.2 Micro ATX Motherboard
The ASRock H310CM-HDV/M.2 Micro ATX Motherboard is designed to meet any need. The board is built with an Intel H310 chipset and supports Intel LGA 1151, which means the council can support processors with TDP. The board also has two USB 3.1 Gen1 ports, a VGA port, and an HDMI port. The board also has a Gigabit LAN port, supporting the 7.1-channel HD Audio standard.
This motherboard is perfect for any DIY PC builder who wants to get a quality motherboard at no cost. It is an excellent alternative to Intel processors and has many expansion options. It’s built with the basics in mind, but it also has tons of other features that can be useful. This includes six SATA3 ports, two USB 3.1 ports, and two USB 2.0 ports. It has built-in audio as well as integrated graphics.
FEATURES:
PCIe Gen2 x 4 M.2 – The PCIe Gen2 x4 interface makes data transfer speeds up to 20Gb/s. Additionally, it supports SATA 3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 kit for installing some U.2 SSDs.
Intel LAN – Intel LAN offers better throughput performance, lower CPU usage, and improved stability, and it can deliver the ultimate network experience to users.
Sapphire Black PCB – Pure black PCB look. The new Sapphire Black PCB means rock-solid quality and gives the motherboard a more mysterious touch.
High-Density Glass Fabric PCB – High-density glass fabric PCB design that minimizes gaps between PCB layers to protect the motherboard from electrical shorts caused by moisture.
3 Graphics Outputs – Finished with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Also, the HDMI port supports 4K resolution.
4K x 2K – Made with a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.
ELNA Audio Caps – ASRock has implemented ELNA audio capacitors in mainstream and entry-level motherboards! Compared to traditional solid caps, ELNA audio caps have a leakage current of only 3uA. This is key to significantly reducing noise levels and satisfying even the pickiest audiophiles.
A-Tuning – A-Tuning is ASRock’s versatile software suite with a new interface, more new features, and improved utilities.
Full Spike Protection – Some sensitive digital components on the motherboard are vulnerable to power surges, too much current can cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to protect your motherboard components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop – ASRock Live Update & APP Shop is created for your convenience. We deliver various apps and support software for users to download. You can also efficiently optimize your system and keep your motherboard up to date with ASRock Live Update and APP Shop.
TECHNICAL SPECIFICATIONS
| Model | H310CM-HDV/M.2 |
| CPU | – Supports 9th and 8th Gen Intel Core Processors (Socket 1151) – Supports CPU up to 95W – 4 Power Phase design – Supports Intel Turbo Boost 2.0 Technology |
| Chipset | – Intel H310 |
| Memory | – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory – Max. The capacity of system memory: 32GB – Supports Intel Extreme Memory Profile (XMP) 2.0 – 15μ Gold Contact in DIMM Slots |
| BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake-up events – SMBIOS 2.7 Support – CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment |
| Graphics | – Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D), and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics – DirectX 12 – HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 – Three graphics output options: D-Sub, DVI-D, and HDMI – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096 x 2160) @ 30Hz – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) – Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports – Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port |
| Audio | – 7.1 CH HD Audio (Realtek ALC887 Audio Codec) – Supports Surge Protection – ELNA Audio Caps |
| LAN | – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Slots | – 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) – 2 x PCI Express 2.0 x1 Slots |
| Storage | – 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI, and Hot Plug – 1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s) |
| Connector | – 1 x Print Port Header – 1 x COM Port Header – 1 x TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin) – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24-pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |

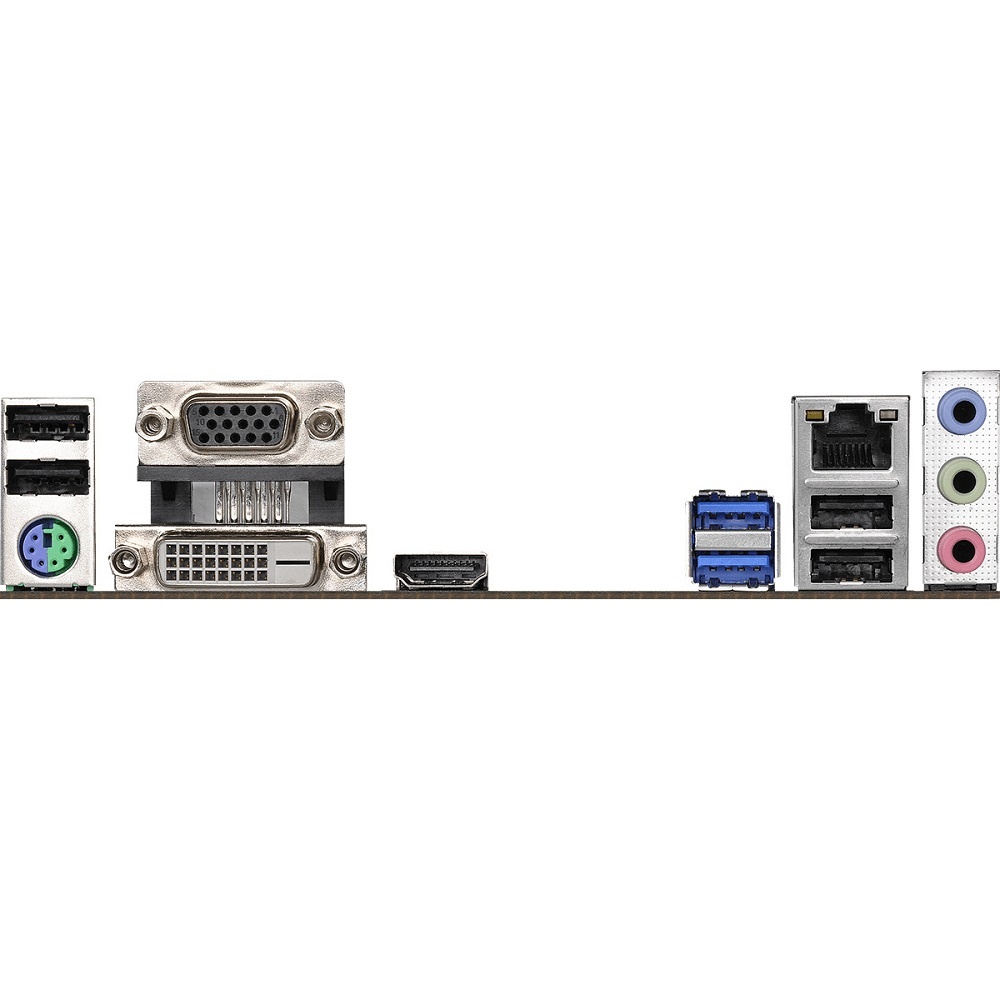

| Rear Panel I/O | – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 4 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software – ASRock A-Tuning – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash |
| Support CD | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser, and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 1 x Screw for M.2 Socket |
| Hardware Monitor | – Temperature Sensing: CPU, Chassis/Water Pump Fans – Fan Tachometer: CPU, Chassis/Water Pump Fans – Quiet Fan (Auto adjust the chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans – CASE OPEN detection – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V |
| Form Factor | – Micro ATX Form Factor – Solid Capacitor design |
| OS | – Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Unique Feature | ASRock Super Alloy – Sapphire Black PCB – High-Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Dimension | 8.9-in x 7.4 (inch) / 22.6 cm x 18.8 (cm) |
| Weight | 250 gm (approx) |
