Gigabyte P550B 550 Watt SMPS | 80 Plus Bronze Certified | Power Supply
Original price was: ₹6,500.₹3,599Current price is: ₹3,599.
(incl. all taxes)
- 550 Watt Output Capacity
- 80 Plus Bronze Certified
- 120mm Hydraulic Bearing Fan
- ATX 12V v2.31 From Factor
- 85% Efficiency at a typical load
HIGHLIGHTS: Gigabyte P550B 550 Watt SMPS
Model – GP-P550B
Rating – 80 Plus Bronze
Wattage – 500 Watt
SATA – SATA x 6
PCI-e Connector – 6+2 Pin x 2
ABOUT Gigabyte P550B 550 Watt SMPS

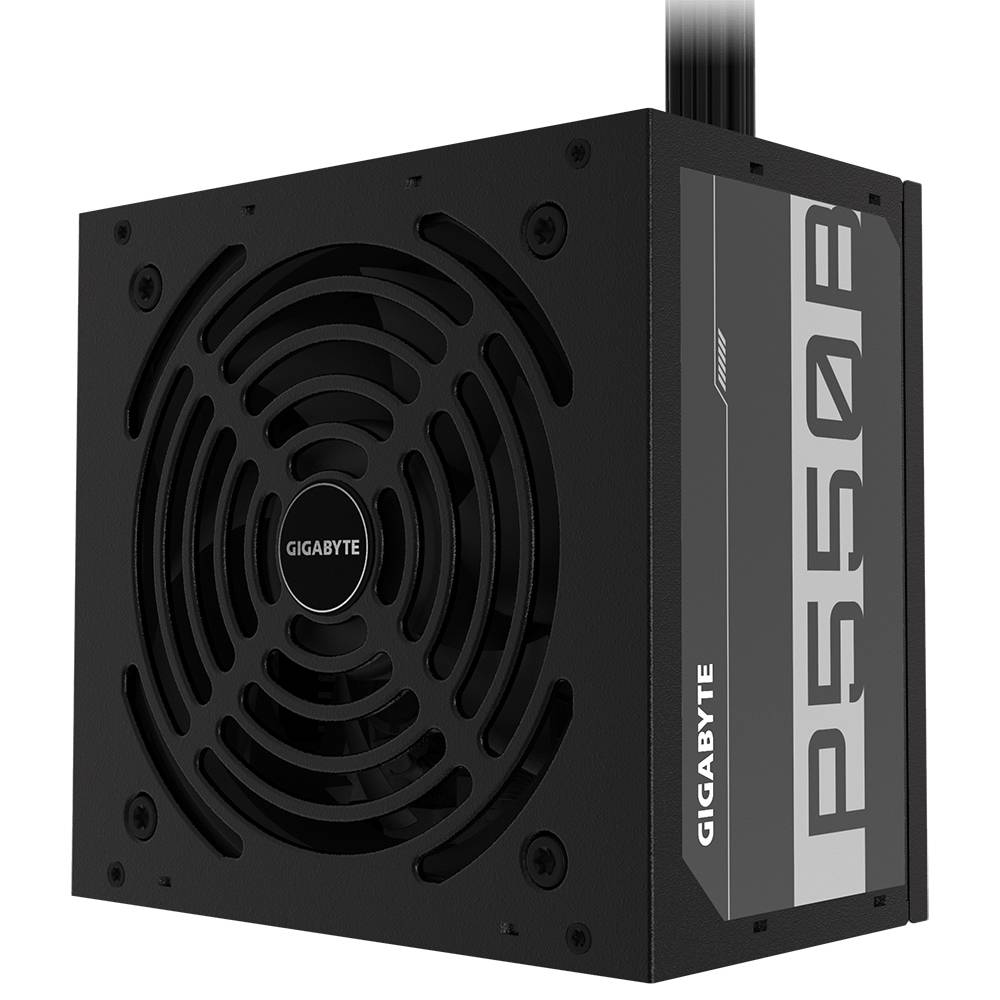

The Gigabyte P550B 550 Watt SMPS/Power Supply is an 80 PLUS Bronze certified SMPS and comes with a reliable flat cable that is all black. Gigabyte P550B has a 120 mm silent hydraulic bearing (HYB) fan type. Furthermore, the Gigabyte P550W includes a single +12V rail, OVP/OPP/SCP/UVP/OCP/OTP protection, and a 3-year warranty.
FEATURES: Gigabyte P550B 550 Watt SMPS
80 Plus Bronze Certified
80 PLUS Bronze certified ensures 85% efficiency at 50% load. Improved power efficiency reduces power wastage, heat, and fan noise.
Reliable Flat Cable
P550B provides the best solution for system builds. The flat cable reduces clutter and improves airflow to the case.
120mm Silent Hydraulic Bearing (HYB) Fan
The 120mm silent hydraulic bearing fan optimizes noise reduction and thermal performance. The fan speed is adjusted according to the automatic power detection. The fan with a hydraulic bearing provides a longer and more stable life.
Single +12V Rail
Single +12V rail provides the best power output, stability, and compatibility for hardware and provides the easiest way to install the power cable. And it is the best design for overclocking.
TECHNICAL SPECIFICATIONS: Gigabyte P550B 550 Watt SMPS
| Model | P550B |
| SMPS Output Capacity | 550W |
| Certification | 80 PLUS Bronze |
| Cable Type | Flat, All black |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 8-4 A |
| Input Frequency | 60-50 Hz |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| Efficiency | 85% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Connectors | ATX / MB 20 + 4 Pin x 1 : 550mm x 1 CPU / EPS 4 + 4 Pin x 1 : 600mm x 1 PCIe 6 + 2 Pin x 2 : 550mm + 150mm x 1 SATA x 6 : 500mm + 120mm + 120mm x 2 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm + 120mm + 120mm + 120mm x 1 |
| Dimension | 150 mm x 140 mm x 86 mm |
