HIGHLIGHTS: Gobbler HOP-HL58 Portable Thermal Printer

Printer Model – HOP HL58

Printer Type – Portable Thermal Printer

Printing Width – 48 mm

Printing Method – Thermal Line

Interface – USB+Bluetooth

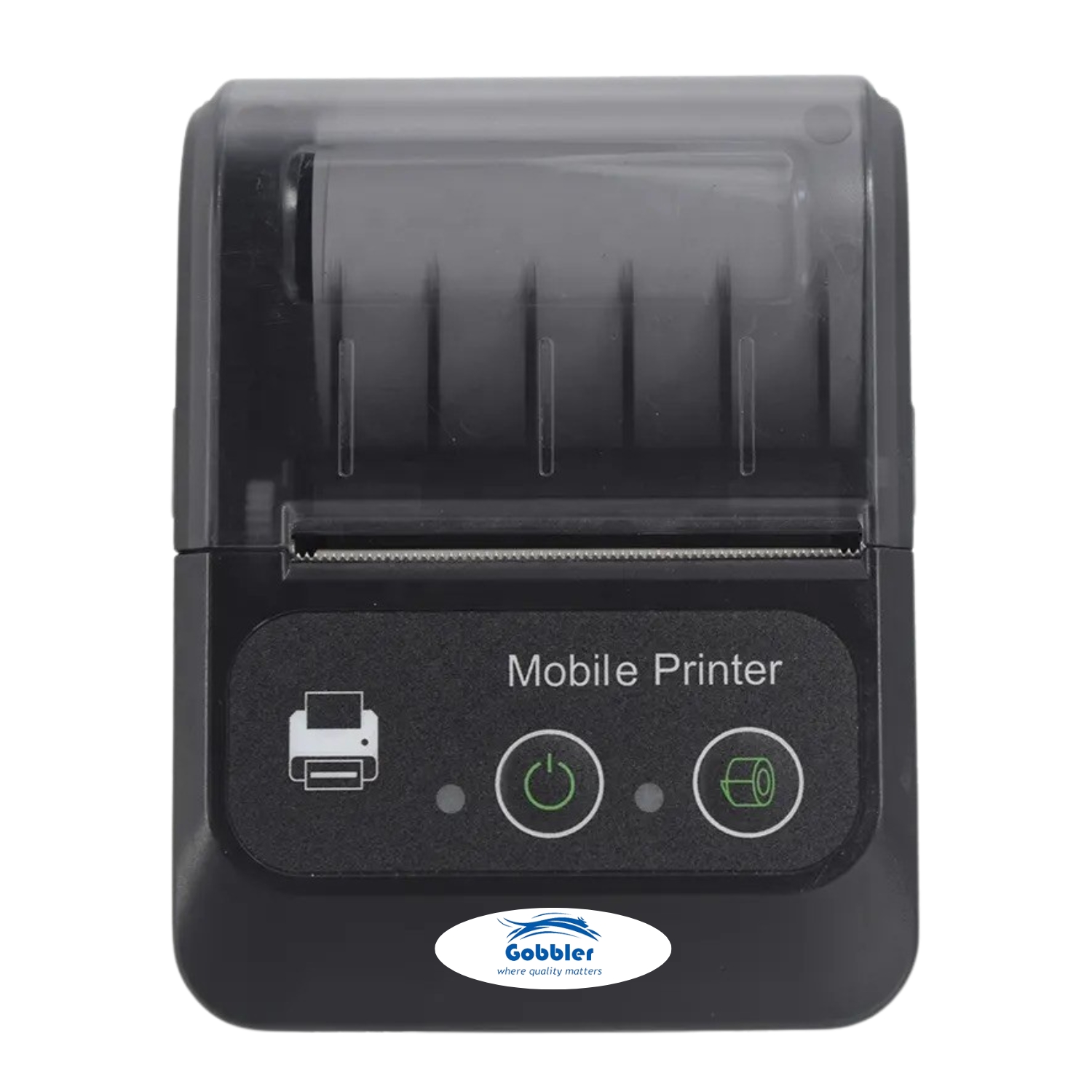

ABOUT Gobbler HOP-HL58 Portable Thermal Printer

The Gobbler HOP-HL58 is a mini portable thermal printer (or it can be called a mobile printer). It comes with a thermal line printing method and has a printing width of 48mm and a resolution of 384 dots/line with a printing speed of 70mm/s The HOP-HL58 has USB and Bluetooth interfaces and comes with ample features.

FEATURES:

Battery Charge Indicator Light

Full On: This means the battery is full; And, Only one light on This means the battery is running out, please charge the battery for normal use.

Error Sign Light

Error icon light flickers, two conditions: Printer is out of paper, replace thermal paper.
The printer core temperature is too high, so the printer stops working, put the printer in low or normal temperature conditions, and makes the printer modest when the temperature of the printer is low.

Charge Index

When charging the battery, the position is likely turned off. When on, the power electricity indicator is on. When the battery is full, the status list turns on. At this time, please pull out the power adapter plug-in, and now you can use it normally.

Connection Connection Signal

When Bluetooth is not connected, the state indicator light is off. When shading through a device printer. The Platinum status indicator light turns on.

TECHNICAL SPECIFICATIONS

USAGE: Gobbler HOP-HL58 Portable Thermal Printer

1. Start
Continue pressing the Power button for 3 seconds, and the printer turns on.

2. Shutdown
When the printer is on, continue to press ‘Power Bottom’ for 3 seconds, and the printer turns off.

3. Print the Self-Test Page
In the shutdown state and the print paper roll is installed well, press ‘Power Bottom’ and ‘Paper Feeding Bottom’ at the same time for 3 seconds, so that the printer is on normally, release ‘Power Bottom’ but ‘Paper Feeding Bottom’ Press ‘Feeding Bottom’ until the ‘Error Indicator’ is still on, then release ‘Paper Feeding Bottom’, then the printer will print a self-test page.

4. Print Density Switch
In the shutdown state and the paper roll is installed well, press ‘Power Bottom’ and ‘Paper Feeding Bottom’ at the same time for 3 seconds, so that the printer is on normally, release ‘Power Bottom’, but ‘Paper Feeding Bottom’ Press ‘FEEDING BOTTOM’ still until the error light is on and off and on, then release the PAPER FEEDING BOTTOM. Then the printer caters to the increasing print density. This will add a print density based on the prior density. But when it comes to Level-4, this operation will be converted into Level-1.

COMMUNICATION:

USB Communication:
This printer USB interface uses the standard USB2.0 communication protocol which can easily connect with windows devices, Android devices, and Linux devices and is equipped with a corresponding driver and SDK, which lets you print arbitrarily.

The printer provides Bluetooth 3.0 and Bluetooth 3.0/Bluetooth 4.0 dual-mode two Bluetooth communication that can easily connect to Windows devices, Android, and iOS devices, and a communication distance of up to 15 meters.
