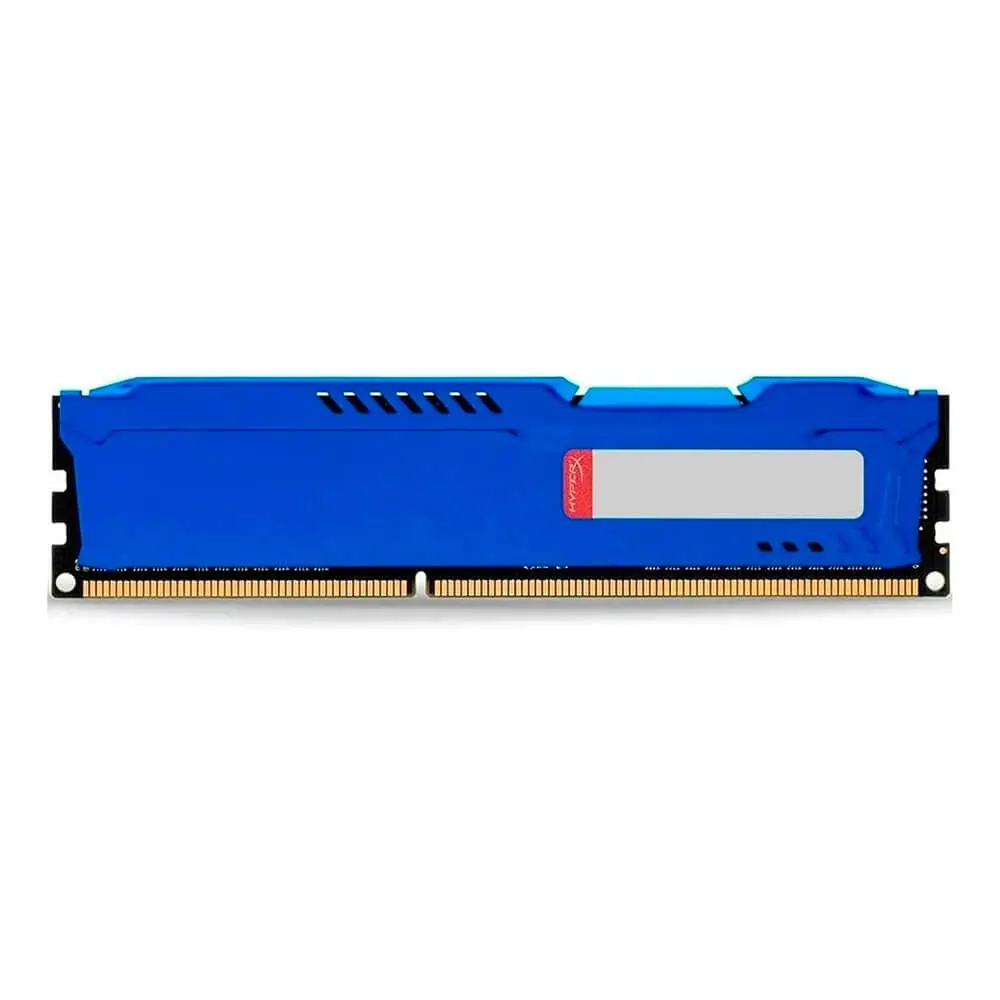

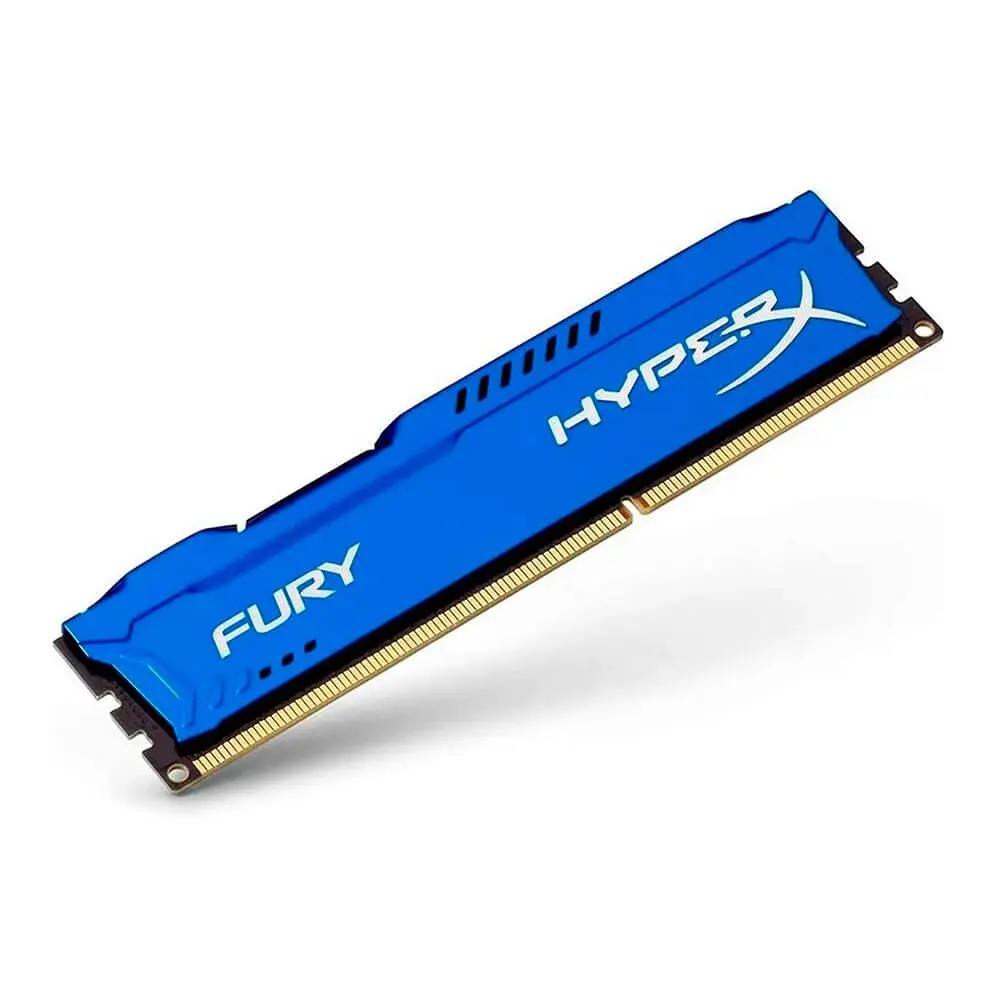

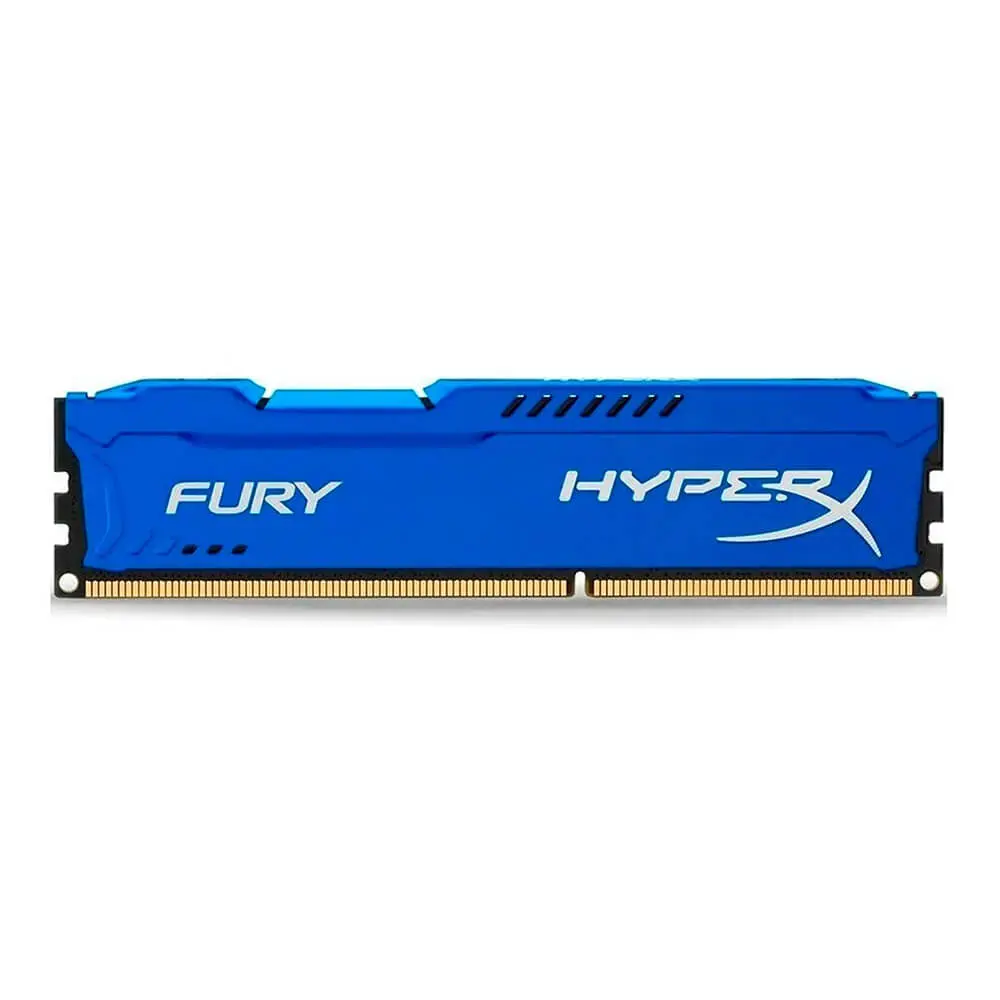

HyperX Fury 4GB (4GBx1) 1600MHz DDR3 Desktop RAM

HyperX FURY DDR3 automatically overclocks to frequencies up to 1866MHz, dishing out an instant, hassle-free, reliable boost of power tuned for Intel’s 100 Series chipset. It runs lean and mean on voltages as low as 1.35V, so it keeps its cool even when you’re under fire. FURY’s asymmetric, edgy design stands out from the blocky, squared crowd and is crafted with quality aluminum. Rocking a black PCB, diamond-cut finish and modules in red, blue, white and black, FURY DDR3 kicks up even the most audacious builds.

FEATURES:

• JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
• VDDQ = 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 10
• Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration: Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• Height 1.291 inch (32.80mm) w/heatsink, single sided component

TECHNICAL SPECIFICATIONS:

Form Factor: UDIMM
Heat Spreader Color: Blue
PCB Color: Black
Pin: 240
XMP Ready: No
Plug N Play: Yes
Speed: 1600
CAS Latencies: CL10-10-10
Voltages: 1.35V
Module Capacity: 4GB
Kit Configuration: Dual Channel
Operating Temperature: 0° C to +85° C
Storage Temperature: -55° C to +100° C
Module Dimensions: 133.35mm x 32.8mm x 7.08mm
