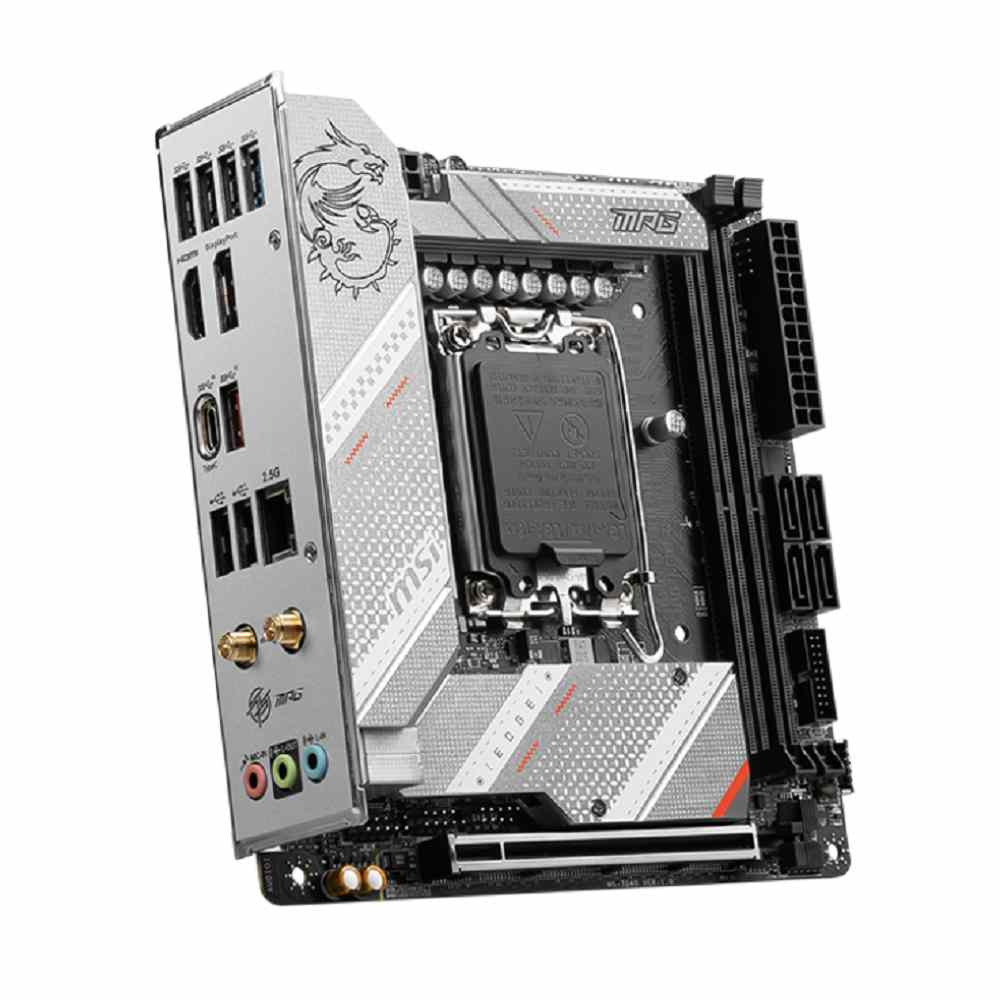

MSI MPG B760I EDGE WIFI DDR4 Mini ITX Motherboard
₹22,199
(incl. all taxes)
- Mini-ITX Form Factor
- Intel LGA 1700 Socket
- Up to 5333+(OC) MHz
- Max 64GB DDR4 Memory
- 2.5G LAN and Intel Wi-Fi 6E
HIGHLIGHTS: MSI MPG B760I EDGE WIFI DDR4 Motherboard
Motherboard Chipset – Intel B760 Chipset
CPU Socket – LGA 1700
Max Memory Slots – 2
Max Memory Support – 64GB
Motherboard Form Factor – Mini-ITX`
About MSI MPG B760I EDGE WIFI DDR4 Motherboard
MSI MPG B760I EDGE WIF is a DDR4 Mini-ITX Motherboard designed for challenging gaming. MSI MPG B760I EDGE WIFI is a fashionable product with a unique style and attitude. It is designed with Intel LGA 1700 Socket and B760 Chipset which makes this motherboard revolutionary in the gaming world.
FEATURES:
Intel LGA 1700 CPU Socket & B760 Chipset – Supports 13th /12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket
Memory/RAM – Supports DDR4 Memory, up to 5333+(OC) MHz
Lightning Fast Game experience – PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2 for a faster data transmission
Enhanced Power Design – Direct 8+1+1 phases power, Core Boost, and Memory Boost ensure, a stable power supply to the CPU, increase clock speed & improve performance.
Premium Thermal Solution – Extended Heatsink Design, 7W/mk rated MOSFET thermal pads, and M.2 Shield Frozr provide system performance & non-stop gaming experience
2.5G LAN and Intel Wi-Fi 6E Solution – Advanced network solution designed for professional & multimedia use. Provides a secure, stable, and fast networking connection
AUDIO BOOST 5 – 7.1-Channel High Definition Audio for studio-grade sound quality and immersive gaming.
High-Quality PCB – High-Quality PCB – 6-layer PCB server-grade level material
Pre-installed I/O Shield – Features better EMI protection and is easy to install.
TECHNICAL SPECIFICATIONS
| Model | MPG B760I EDGE WIFI DDR4 |
| CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Memory | 2 x DDR4, Maximum Memory Capacity 64GB Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Expansion Slots | 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Onboard Graphics | 1 x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1 x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed. |
| Storage | 2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x 4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x 4 / SATA mode, supports 2280 devices 4 x SATA 6G |
| USB | 2 x USB 2.0 (Rear) 2 x USB 2.0 (Front) 4 x USB 3.2 Gen1 Type A (Rear) 2 x USB 3.2 Gen1 Type A (Front) 1 x USB 3.2 Gen2 Type A (Rear) 1 x USB 3.2 Gen2 Type C (Rear) 1 x USB 3.2 Gen2 Type C (Front) |
| LAN | Realtek RTL8125BG 2.5Gbps LAN |
| Audio | Realtek ALC897 Codec 7.1-Channel USB High Performance Audio |
| Wireless/Bluetooth | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3**, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED Features | 4 x EZ Debug LED |
| Internal Connectors | 1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) 1 x CPU Fan 1 x Pump Fan 1 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 2 x USB 2.0 ports 2 x USB 3.2 Gen1 Type A ports 1 x USB 3.2 Gen2 Type C ports |

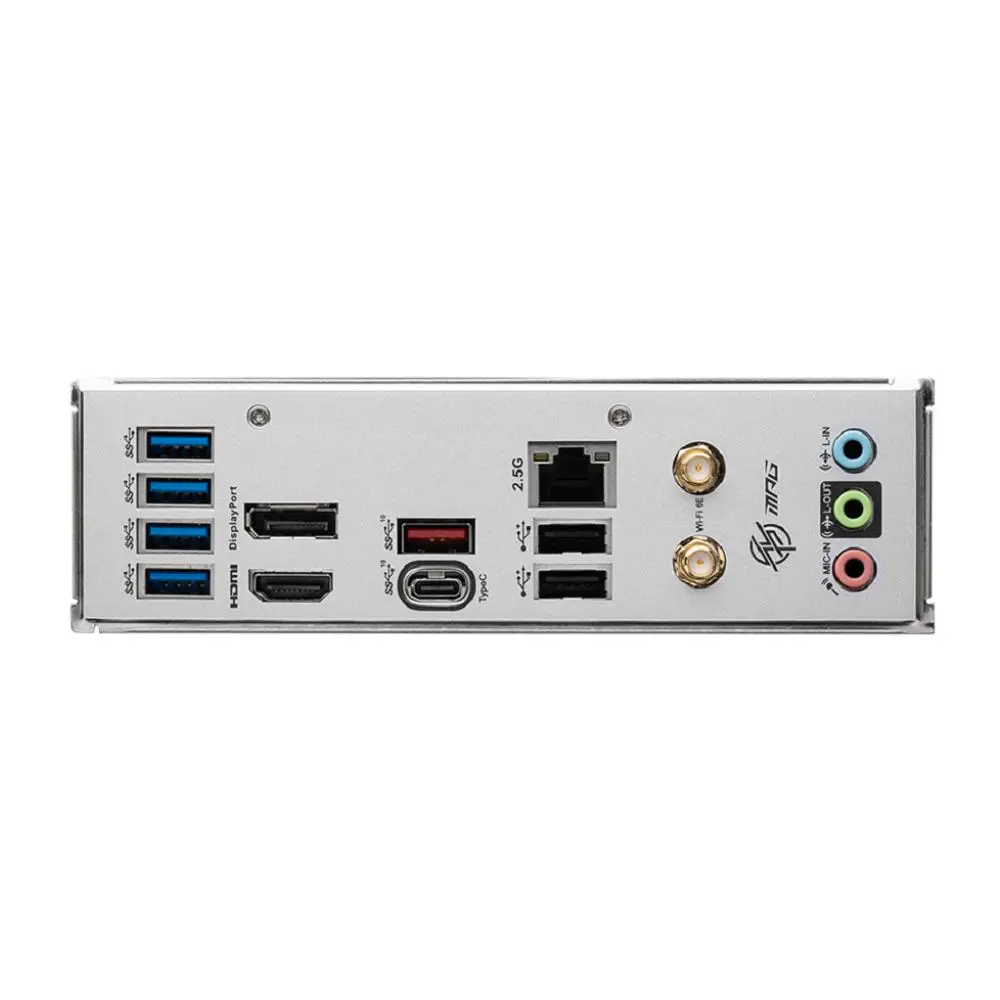

| Back Panel Ports | -USB 3.2 Gen 1 5Gbps -Display Port -USB 3.2 Gen 2 10Gbps -2.5G LAN -Audio Connectors -HDMI -USB 3.2 Gen 2 10Gbps (Type-C) -USB 2.0 -Wi-Fi / Bluetooth |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Mini-ITX |
| Dimensions | 170 x 170 (mm) |
