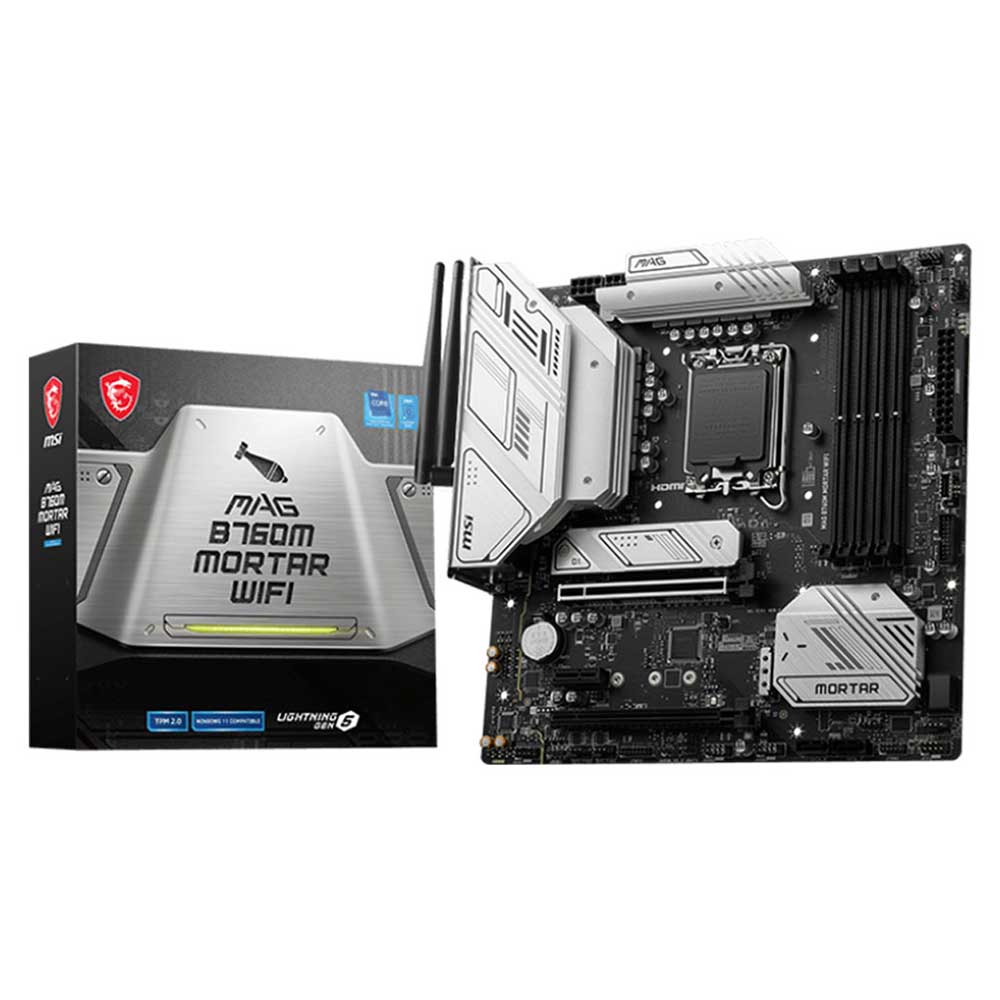

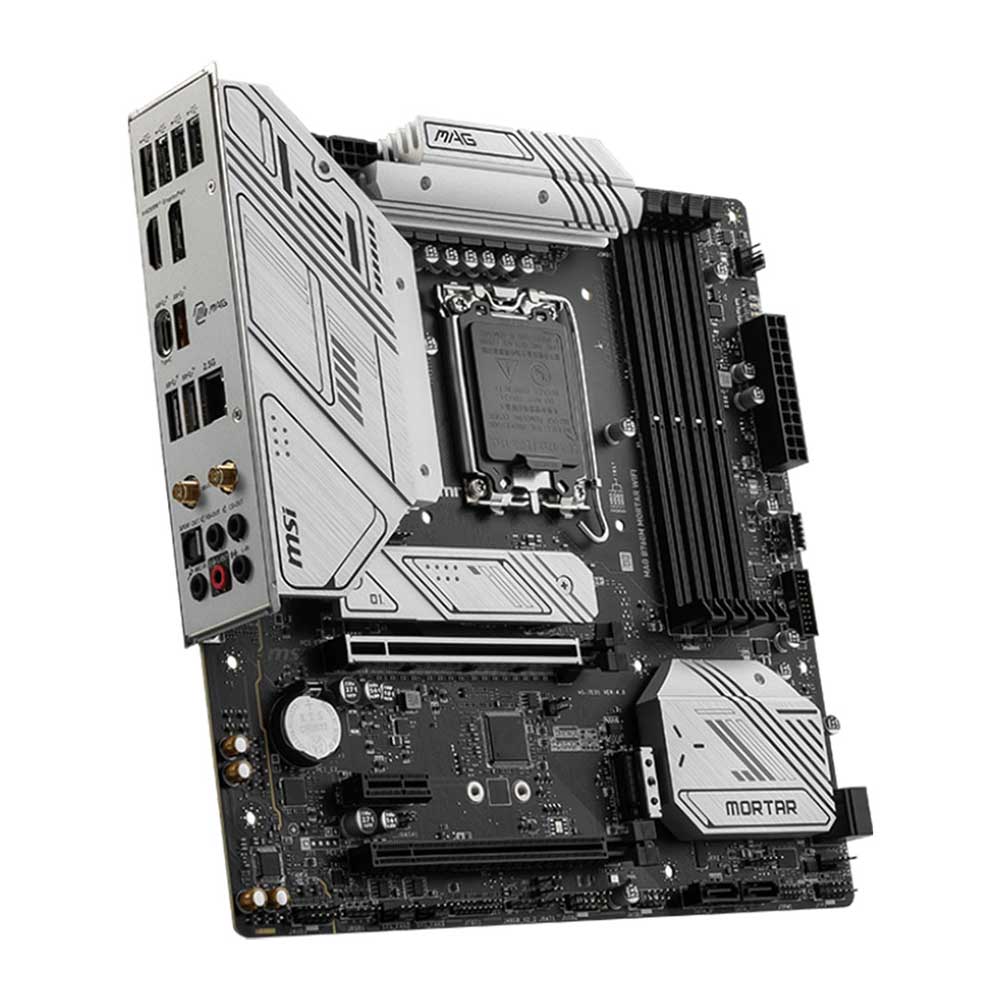

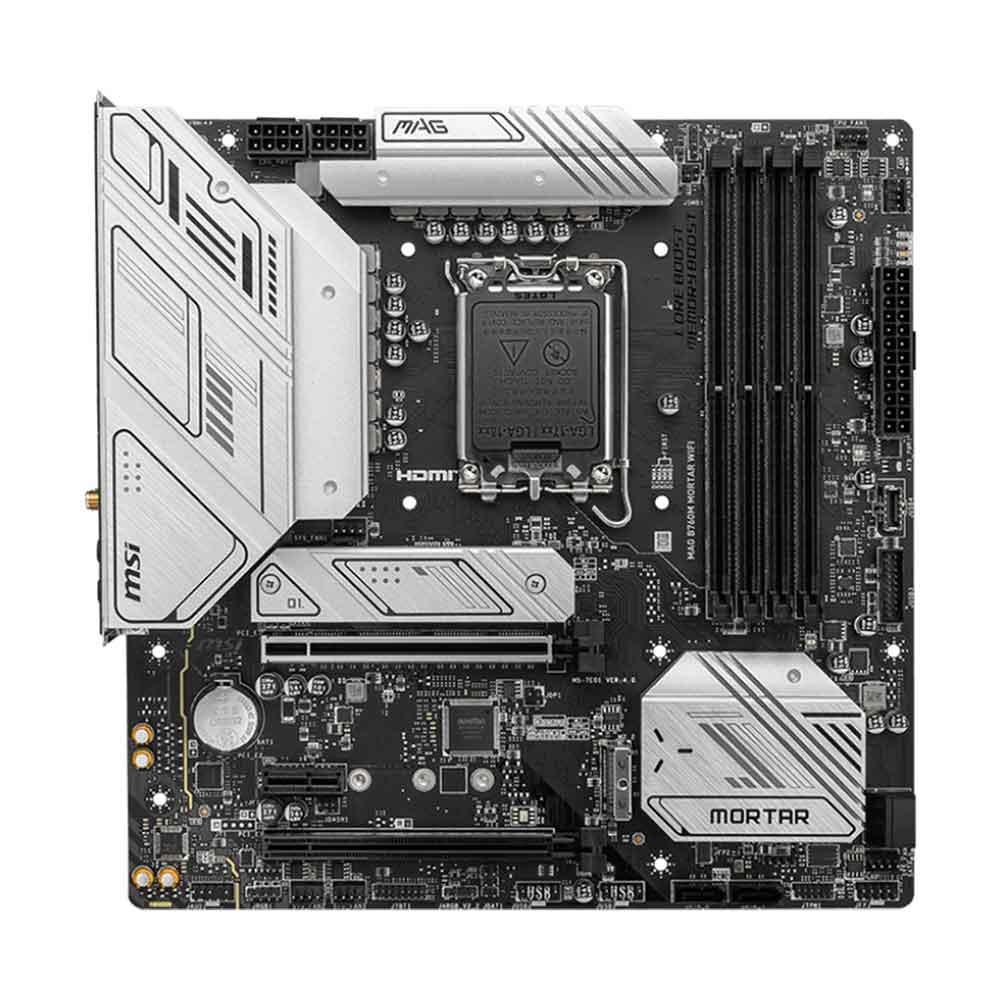

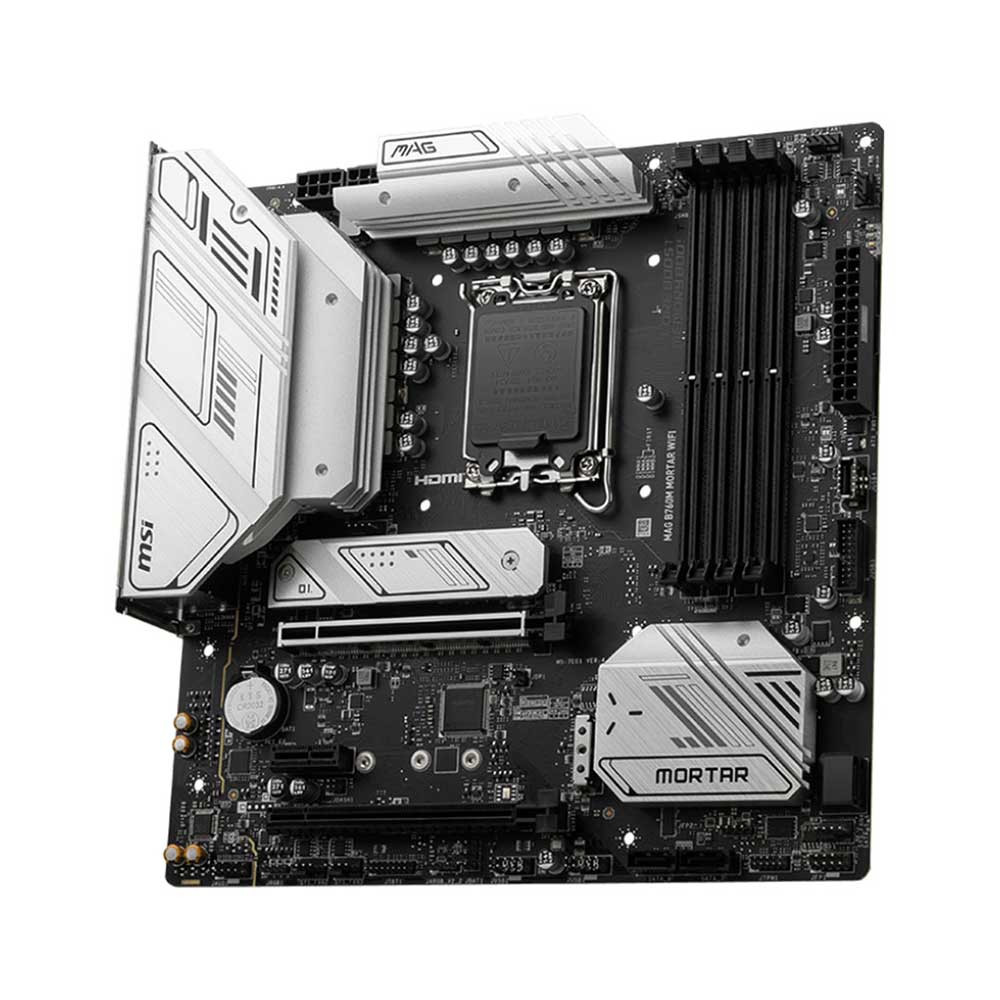

MSI MAG B760M MORTAR WIFI DDR5 Micro ATX Motherboard
Original price was: ₹38,599.₹19,799Current price is: ₹19,799.
(incl. all taxes)
- Micro ATX Form Factor
- LGA1700 CPU socket
- INTEL B760 Chipset
- 4 x DDR5 (Max 192GB) Memory
- Wi-Fi 6E | 2.5G Network Solution
The MSI MAG B760M MORTAR WIFI DDR5 Motherboard battles gamers for the honor. With military-inspired elements added to these gaming products, they have been reborn as a symbol of toughness and durability.
MSI MAG B760M MORTAR WIFI DDR5 Micro ATX Motherboard lets you manage the speed and temperature for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up 4 temperature targets, which will automatically adjust the fan speed.
FEATURES:
Lightning Gen 5 – Latest PCIe 5.0 solution with a bandwidth of up to 128GB/s Maximum transfer speed.
OC Engine –Â Along with the clock generator, OC Engine releases technology Maximum power of the CPU.
6-Layer PCB with 2oz Thickened Copper – An enhanced PCB design provides superior performance and long-lasting system stability without compromise.
Wi-Fi 6E –Â The latest wireless solutions support the 6GHz spectrum, MU-MIMO, and BSS color technology, providing speeds of up to 2400Mbps.
2.5G Network Solution – Features premium 2.5G LAN to provide a better network experience.
Lightning USB 20G – Built-in USB 3.2 Gen 2×2 port, offering 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
M.2 Shield FROZR – The built-in M.2 thermal solution is reinforced. M.2 secures the SSD to prevent throttling to run faster.
Memory Boost –Â Advanced technology to provide pure data signal for optimum Performance, stability, and compatibility.
Audio Boost – Reward your ears with the studio-grade sound quality for a maximum Immersive audio experience.
Core Boost – With a premium layout and fully digital power design to support Providing more cores and better performance.
Latest DDR5 Memory – A huge step up in DDR performance with the latest DDR5 memory and MSI Memory Boost technology.
TECHNICAL SPECIFICATIONS: MSI MAG B760M MORTAR WIFI DDR5 Micro ATX Motherboard
| Model | MAG B760M MORTAR WIFI |
| Chipset | INTEL B760 |
| CPU Socket | LGA1700 |
| CPU Support | Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| Memory Support | 4 x DDR5, Maximum Memory Capacity 192GB, Max Memory Support 7000+(OC) |
| Storage | 2 x M.2 Gen4 x4 64Gbps slots 4 x SATA 6Gb/s ports |
| USB ports on Board | 8 x USB 2.0 2 x USB 3.2 Gen1 Type A 3 x USB 3.2 Gen2 Type A 1 x USB 3.2 Gen2 Type C 1 x USB 3.2 Gen2x2 Type C |
| LAN | Realtek RTL8125BG 2.5Gbps LAN |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost |

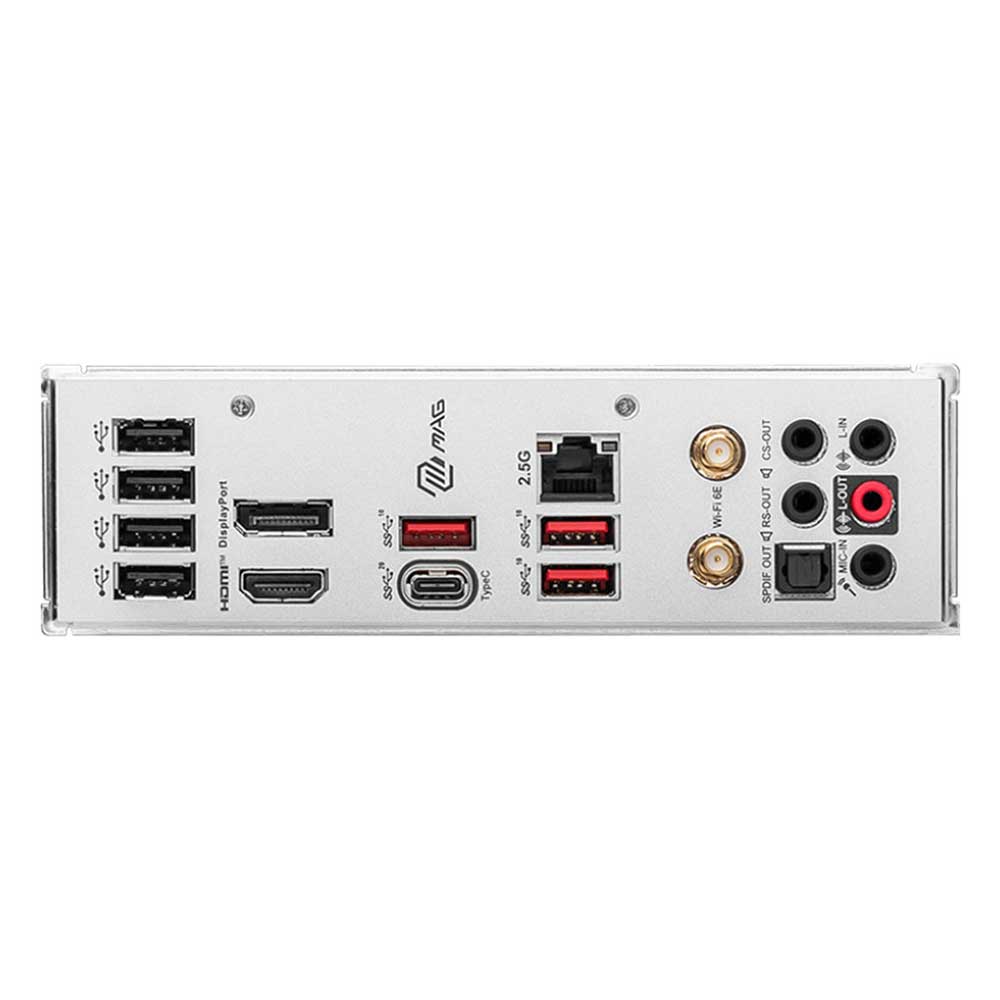

| Back Panel Connectors | 4 x USB 2.0 1 x DisplayPort 1.4 3 x USB 3.2 Gen 2 10Gbps Type-A 1 x 2.5G LAN Port 2 x Wi-Fi / Bluetooth Antenna 5 x HD Audio Connectors 1 x HDMI 2.1 Port 1 x USB 3.2 Gen 2×2 20Gbps Type-C 1 x Optical S/PDIF OUT |
| Expansion Slot | 1 x PCIe 5.0 x16 slot 1 x PCIe 4.0 x16 slot 1 x PCIe 3.0 x1 slot |
| Built-in Bluetooth | Yes, V5.3 |
| Built-in Wifi | Yes, Intel Wi-Fi 6E |
| Lighting | NA |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
Specification: MSI MAG B760M MORTAR WIFI DDR5 Micro ATX Motherboard
|
